Corner Rounder & Hole Punches
Product Overview & Key Specifications
The Traffic Sign Punch Station is a pneumatically powered fabrication tool designed to cut precise corner radii and punch uniform mounting holes into durable sign blanks. Available as a compact bench-top unit or a standalone station integrated onto a heavy welded steel bench, it streamlines production setups for safety and traffic sign fabricators.
Interchangeable Tooling Options
This high-volume production station functions dynamically by allowing operators to swap quickly between specialized corner shearing and precision hole-punch modules.

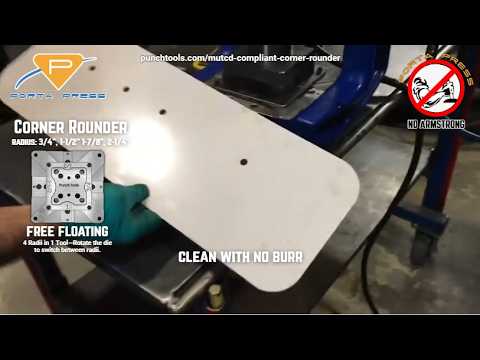

1. Corner Radius Tooling (4 Radii in 1 Tool)
Adjust configurations instantly to comply with strict municipal or transport engineering guidelines:
Standard Radii Configurations
- 1/2" Radii Edge
- 3/4" Radii Edge
- 1" Radii Edge
- 1-1/2" Radii Edge

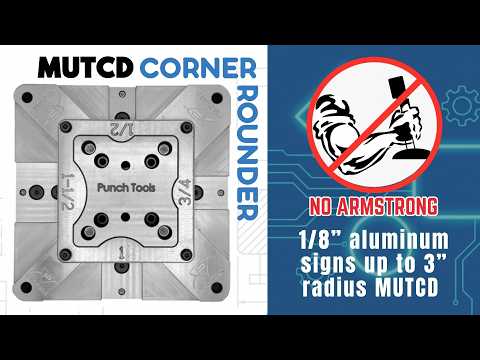

MUTCD Compliant Radii Configurations
Engineered precisely for Department of Transportation (DOT) highway safety sign regulations:
- 1-1/2" MUTCD Radii
- 1-7/8" MUTCD Radii
- 2-1/4" MUTCD Radii
- 3" MUTCD Radii
2. Mounting Hole Punches
Set clean, burr-free mounting points on standard regulatory profiles without deformation:
- Standard Punch Dimensions: 3/8" diameter holes standard (interchangeable custom tooling sizes engineered upon request).
- Advanced Alignment Controls: Supports edge offset holes running centered on sign widths up to 72” wide.

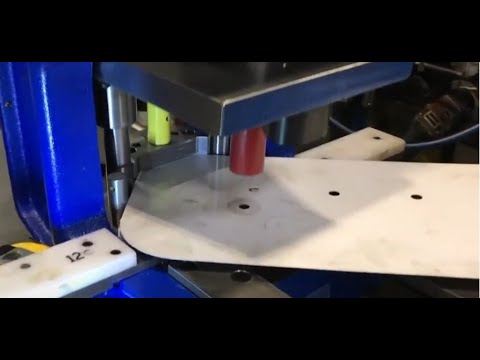

- Diamond-Sign Adaptability: Integrated add-on accessories quickly configure alignment stops to punch true corner-offset positions for diamond hazard layouts.

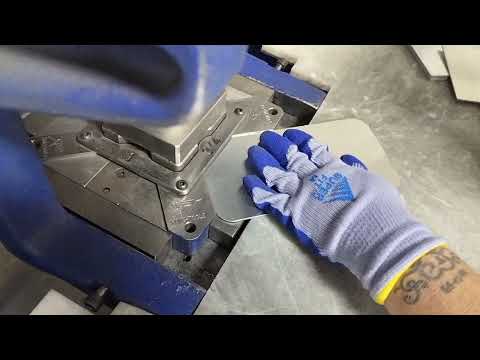

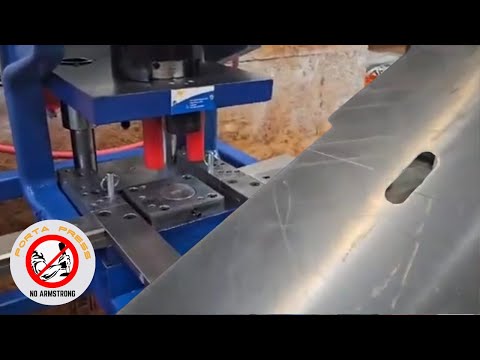

Demonstration & Production Videos
See our pneumatic sign manufacturing tools in operation via our factory technical demonstrations:
