4" Louver Tool (Click to see Formed Louver Drawing)
Add the elegance and functionality of louvers to your next project with Punch Tools louver tool set. Discover a quicker and easier way to make louvers without the expense of complicated tooling. Make one louver punch or create panels in nearly any sheet metal. Perfect for low volume venting enclosure production, prototyping, air cooling systems, fireplace shields, or custom car renovators.
Need a Custom Louver Size?
To purchase ready-stock louver punches or dies block, visit https://punchtools.com/louver-punch-&-die
To purchase a tool adapter, visit our https://punchtools.com/-tooling-adapters
Our Standard Stocked Louver Tools come with Standard American Style tang. For Alternate tangs, Identify your Press Brake, and you can purchase compatible tool holders and adapters here.
| Louver Length | 4" | |
|
Louver Tool Dimensional DWG |
4" Tool DWG  |

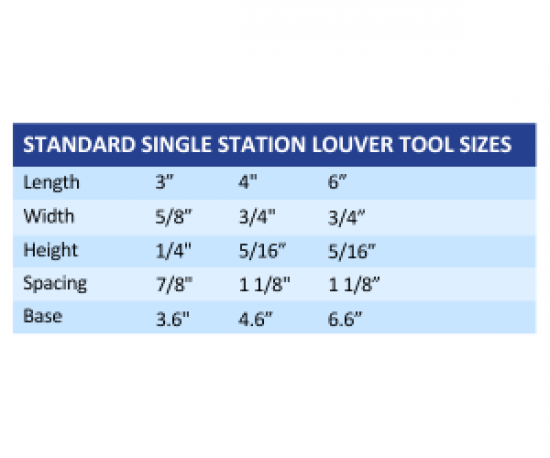

The Louver Tool sizes available for immediate made-to-order production are:
|
| Formed Louver Drawing | 4" Formed Louver DWG  |
|
| Louver Width/Depth | 3/4" | |
| Louver Height | 5/16" | |
|
Spacing between Louvers (Progressive Spacing) |
1 1/8" | |
| Base | 4.6" | |
| Prices | $975Order Now | email us at louvers@punchtools.com |
